Xtreme Smart Data Logger
Data Loggers
Class A compliant Data loggers as per IEC61724-1:2021 and IEC61400-12-1:2022
- ADC Resolution24-bit> 20 ENOB
- Simultaneous Parameters1,000Sensor + calculated
- Data Retention5+ Yr8 GB internal memory
- Onboard Storage8GBExpandable to 32 GB

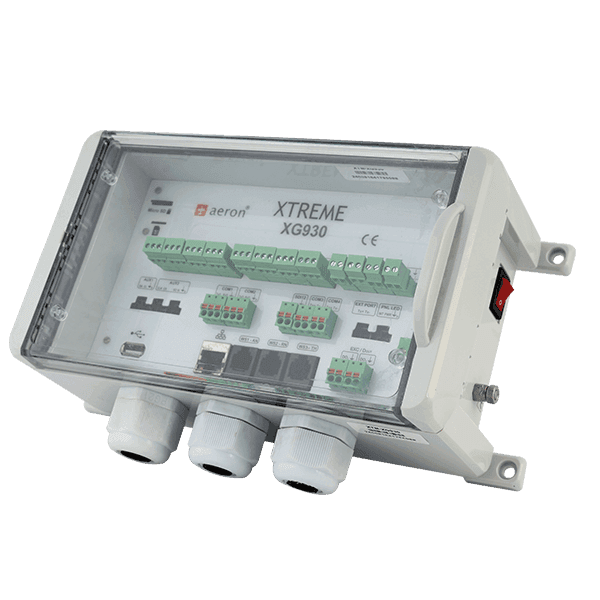

Xtreme Smart Data Logger
- XTM XG920
- 8 Analog Channels, 4 differential or 8 single-ended
- XTM XG930
- 16 Analog Channels, 8 differential or 16 single-ended
A robust family of smart data loggers capturing measurements from diverse sensors via analog and digital interfaces. Powered by a 32-bit 900 MHz processor and 24-bit ADC with edge computing for AI-based IIoT applications.
Features
Every capability purpose-built to deliver reliable, accurate data acquisition in the harshest field conditions.
24-Bit ADC Resolution
Industry-leading 24-bit ADC with over 20 ENOB ensures high-fidelity conversion across all analog inputs — essential for bankable IEC-compliant datasets.
Multiple Input Channels
4 differential or 8 single-ended inputs on XG920, 8 differential or 16 single-ended on XG930 — scale sensor count without adding hardware.
IEC Class A Compliance
Compliant with IEC 61724-1:2021 and IEC 61400-12-1:2022 — delivering auditor-ready datasets for solar WMS and wind metmast applications.
Multiple Serial Interfaces
RS232 (×2), RS485 (×2), and SDI12 provide simultaneous Modbus master/slave, NMEA output, and sensor bus — all from one device.
Multi-Protocol Communication
Ethernet, Wi-Fi, Bluetooth, and 4G LTE with Modbus TCP, IEC 60870-5-101/104, SFTP, HTTP, and HTTPS — connects to any network architecture.
Precision Time Synchronisation
GPS, cellular NTP, and onboard RTC with battery backup ensure timestamps are aligned across all logged parameters.
Robust Data Storage
8 GB internal + 32 GB SD card expandable, CSV format, USB pen drive retrieval, and web download — over 5 years of data with zero gap.
IP65 Environmental Protection
PC UV-protected housing rated IP65 for −40°C to +70°C operation — engineered for long-term outdoor deployment without compromise.
Energy-Efficient Operation
Under 10 W total consumption on 9–28 V DC input with surge protection — runs continuously on a 20 W solar panel in off-grid sites.
Technical Specifications
Network
| Physical Interfaces | Ethernet · Wi-Fi · Bluetooth · LTE |
|---|---|
| IP Protocols | MODBUS TCP · IEC 60870-5-101 · IEC 60870-5-104 · BNEP · SFTP · FTP · HTTP · HTTPS |
| LTE Bands (FDD) | B1 / B3 |
| LTE Bands (TDD) | B38 / B39 / B40 / B41 |
| Other RF Bands | TDSCDMA B34/B39 · WCDMA B1 · CDMA2000 1x/EVDO BC0 |
| GSM | 900 / 1800 MHz |
| Wi-Fi Standard | IEEE 802.11 a/b/g/n · 2.4 GHz |
| Bluetooth | V2.1 / V3.0 / V4.0 · 2.4 GHz |
Serial Interfaces
| Interfaces | RS232 (×2), RS485 (×2), SDI12 |
|---|---|
| RS232(1) Protocol | NMEA (Output) / MODBUS Slave |
| RS232(2) Protocol | MODBUS Master |
| RS485(1) Protocol | MODBUS Master |
| RS485(2) Protocol | MODBUS Slave |
| Baudrate RS232/RS485 | 9600 · 19200 · 38400 · 57600 · 115200 bps |
| Baudrate SDI12 | 1200 bps |
Measurement
| Simultaneous Parameters | 1,000 (sensor + calculated) |
|---|---|
| Sampling Interval | 1 Hz — IEC 61724-1:2021 & IEC 61400-12-1 compliant |
| Instantaneous Logging Interval | 1 second for all parameters |
| Average Logging Interval | User-selectable: 1 minute to 24 hours |
| Parameter Data Types | Instantaneous · Average · Standard Deviation · Min · Max |
| Wind Gust Recording | 3-second & 1-minute gust with wind direction |
| Time Synchronisation | GPS / Cellular / NTP / Manual |
Analog Input
| Channels — XTM XG920 | 4 differential or 8 single-ended |
|---|---|
| Channels — XTM XG930 | 8 differential or 16 single-ended |
| Input Range | 0–5 V · 0–1 V · 0–100 mV · 0–20 mA · 80–200 Ω (PT100) · 800–2,000 Ω (PT1000) |
| Resolution | 24-bit |
| Accuracy at 30 °C | ±0.01 % of Full Scale |
| Accuracy (full range) | ±0.03 % of Full Scale |
Environment
| Operating Temperature | −40 °C to +70 °C |
|---|---|
| Ingress Protection | IP65 |
| Housing Material | PC UV Protected |
| Dimensions (L×W×H) | 231 × 125 × 90 mm |
| Weight | < 1 kg |
| EMI/EMC Compliance | EN61326-1:2013 |
Other
| Microprocessor | 32-bit · 900 MHz |
|---|---|
| ADC Effective Bits | > 20 ENOB |
| LED Indicators | Power · Internet |
| RTC | Onboard with 3 V coin cell backup |
| On-board Sensor | Temperature |
| Additional Sensors | Rain Bucket (Davis) · Anemometer (Davis) · Air Temp/Humidity (Aeron, Davis) · OPC Particle Sensor (Alphasense) |
Storage
| Internal Memory | 8 GB |
|---|---|
| SD Card | 8 GB (expandable to 32 GB) |
| Data Format | .csv |
| Data Retrieval | Web download (local & remote) / USB Pen Drive |
| Data Retention | Over 5 years in operational conditions |
Electrical
| Voltage Input | +9 V to +28 V DC |
|---|---|
| Power Consumption | < 10 W |
| Reverse Voltage Protection | 30 V DC |
| Surge Protection | ±2 kV on power lines · ±1 kV on signal lines |
| Batteries | Optional — purchased separately |
Digital I/O
| Digital Inputs | 4 |
|---|---|
| Digital Outputs | 2 |
| Max Input Frequency | 1 kHz |
Built for Every Field Condition
From solar farms to industrial plants, Xtreme delivers certified performance across the most demanding monitoring environments.

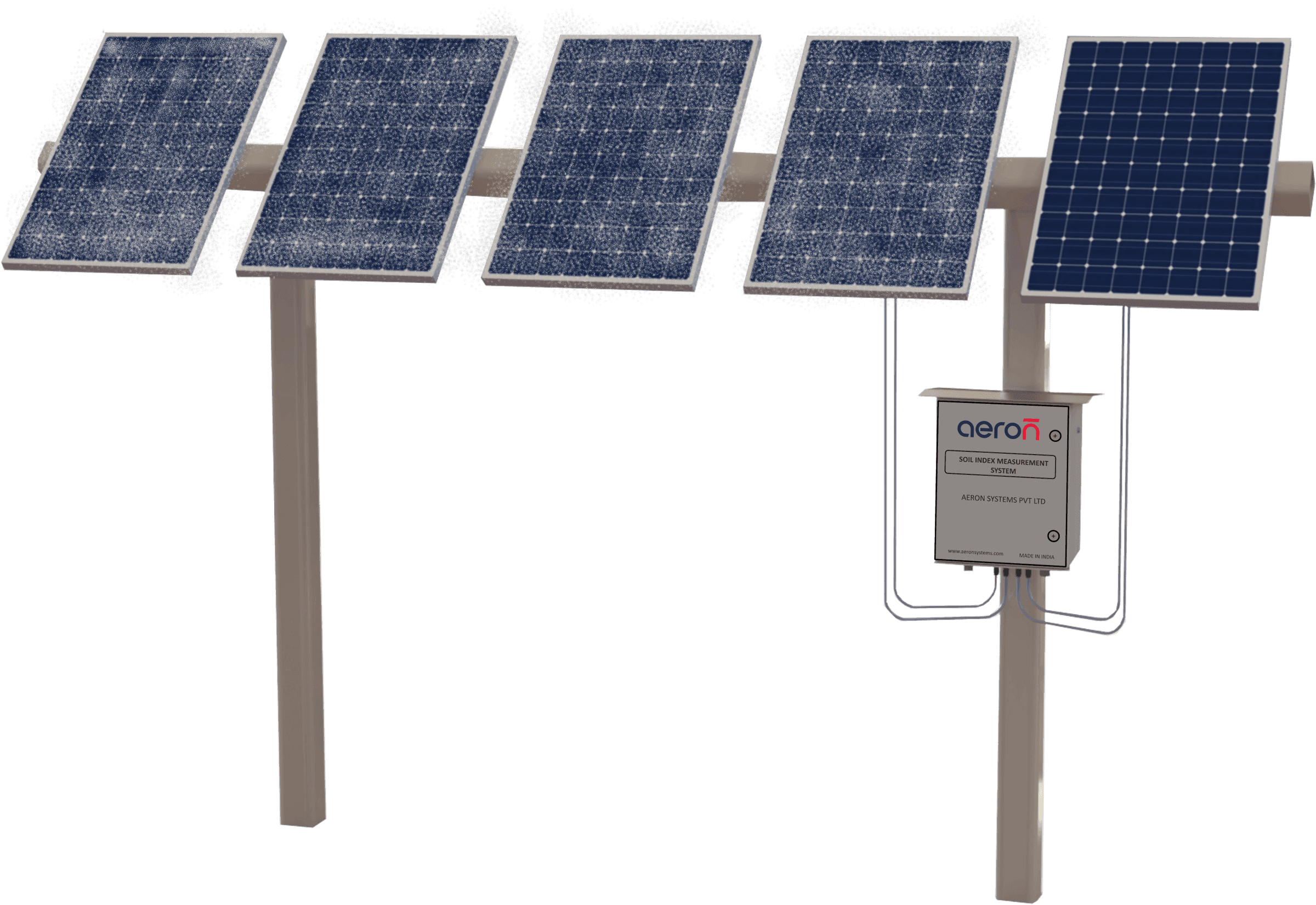

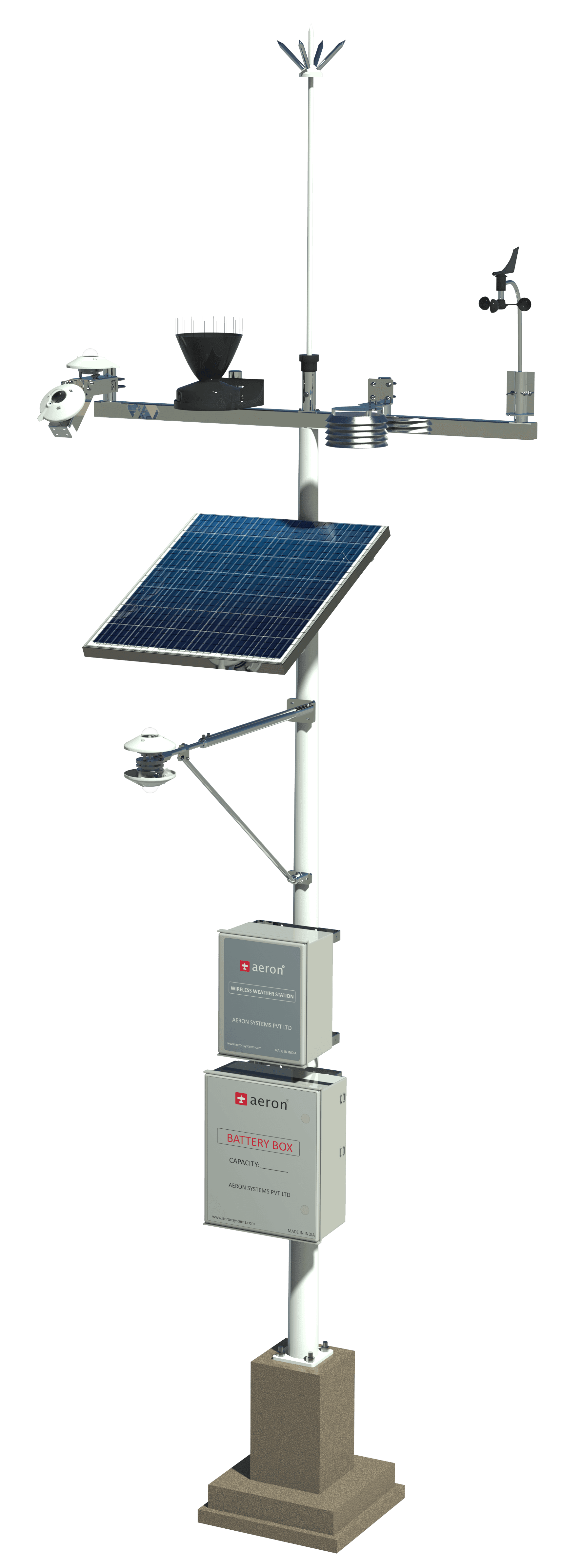

Solar WMSWeather Monitoring Station

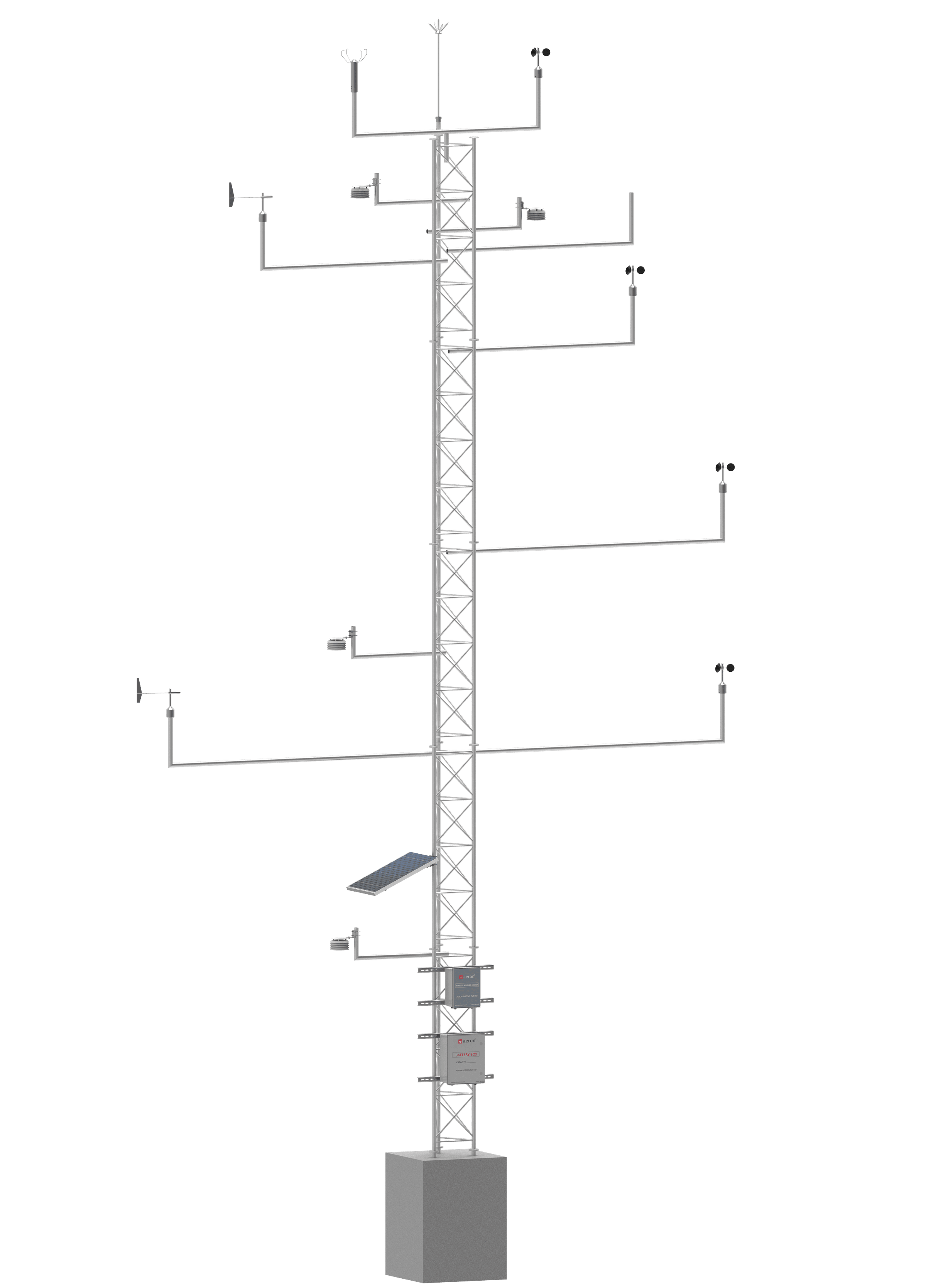

Wind MetmastMeteorological Mast Logging
Environment MonitoringResearch & Climate
Energy ManagementSCADA & Grid Analytics
Process MonitoringIndustrial IoT (IIoT)
See how Xtreme leads the field

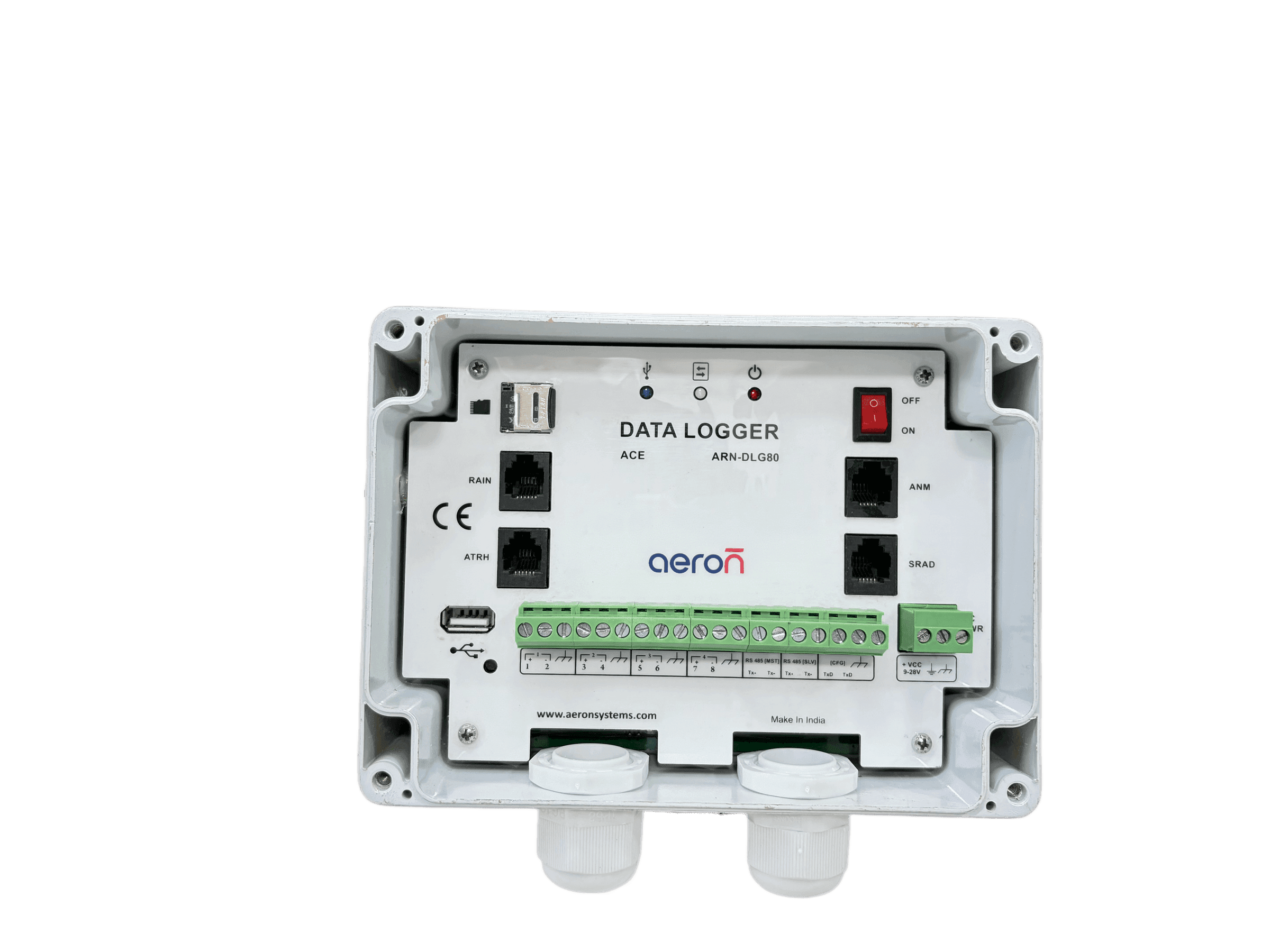

Ace DLG80, Xtreme SDL, Ace DLG88L side by side.
| Ace DLG80C&I Solar & Agrivoltaic | Xtreme SDLIndustrial IoT Logger | Ace DLG88LAgri & Met Logger | |
|---|---|---|---|
| Core Performance | |||
| ADC Resolution | 24-bit | 24-bit (>20 ENOB) (stronger) | 12-bit Sigma-Delta |
| ADC Accuracy | ±0.1% FS | ±0.01% FS at 30 °C ±0.03% FS (full range) (stronger) | ±0.1% FS |
| Simultaneous Parameters | — | 1,000 (stronger) | 176 |
| Min. Logging Interval | 1 minute | 1 second (stronger) | 1 minute |
| Inputs & Interfaces | |||
| Analog Channels | 8 SE / 4 Differential | XG920: 8 SE / 4 Diff XG930: 16 SE / 8 Diff (stronger) | Davis & Aeron sensor suite |
| Signal Input Types | 0–500 mV · 0–1 V 4–20 mA · PT100 · PT1000 | 0–100 mV · 0–5 V 0–20 mA · PT100 · PT1000 | Aeron / Davis compatible |
| Digital I/O | — | 4 DI · 2 DO · 1 kHz (stronger) | — |
| Serial Interfaces | 2× RS485 Modbus RTU (Master + Slave) · RS232 | 2× RS232 · 3× RS485 SDI-12 | RS485 Modbus RTU SDI-12 |
| Modbus Role | Master & Slave | 2 Master & 1 Slave (stronger) | — |
| Connectivity | |||
| Wireless Network | 4G LTE | 4G LTE · Wi-Fi Bluetooth (stronger) | 4G LTE |
| Wired Network | — | Ethernet (stronger) | — |
| Protocols | Modbus RTU LTE cloud | Modbus RTU/TCP IEC 60870-5-101/104 SFTP · HTTP/HTTPS (stronger) | Modbus RTU LTE cloud |
| Cloud Analytics | Aeron Live3 (PR & CUF analytics) (stronger) | Aeron Live3 | Aeron Cloud |
| Storage & Time | |||
| Primary Storage | 8 GB micro-SD | 8 GB internal + 8 GB SD (exp. 32 GB) (stronger) | 8 GB micro-SD (up to 32 GB) |
| Data Capacity | 5+ years | 5+ years | 5+ years |
| Data Retrieval | USB pen drive | USB · Web (local & remote) (stronger) | USB to laptop |
| Time Synchronisation | GPS | GPS · NTP · Cellular · Manual (stronger) | Network server (sync on connect) |
| Power & Physical | |||
| Power Supply | 9–28 V DC | 9–28 V DC (<10 W) | 9–28 V DC + Li-ion 5200 mAh + 20 W solar (stronger) |
| IP Rating | IP65 | IP65 | IP65 |
| Operating Temperature | — | −40 °C to +70 °C (stronger) | −20 °C to +70 °C |
| Housing | PC/ABS UV-resistant | PC UV-protected | ABS UV-protected |
| Dimensions (mm) | 170 × 125 × 67.5 | 231 × 125 × 90 | 125 × 170 × 66.5 |
| On-board Display | — | — | LCD 128×64 3-button keypad (stronger) |
| Standards & Application | |||
| IEC Standard | IEC 61724-1:2021 Class A | IEC 61724-1:2021 + IEC 61400-12-1:2022 (stronger) | — |
| CE Compliance | EN 61326-1:2021 | EN 61326-1:2013 | — |
| Primary Application | C&I Solar Plants Agrivoltaic monitoring | Solar · Wind · Environment Industrial IIoT | Agriculture Meteorology |
| Product Code(s) | 23009 | 24008 / 24009 | 23005 – 23008 |
