Multi-Constellation, Multi-Frequency RTK GNSS Receivers
Aeron's DENEB family of GNSS receivers delivers centimetre-level RTK positioning across man-portable, rugged and tactical form factors — engineered for autonomous vehicles, robotics, survey and defence platforms.
L1/L2/L5 RTK GNSS receiver tracking up to six satellite constellations simultaneously.
Qualified to MIL-STD-810G shock, vibration and temperature test standards.
Continuous position, velocity and time data streamed for live navigation and control.
Centimetre-level position accuracy in Real Time Kinematic (RTK) mode.
UTC-synchronized 1PPS timing output for precise time synchronisation.
RS232, RS422 and Ethernet connectivity across the receiver family.
Sealed enclosure rated IP65 for harsh field and tactical environments.
Power/Health, GNSS Fix and Communication LEDs for at-a-glance status monitoring.
Autonomous platforms, survey crews and defence systems all depend on positioning that stays accurate under pressure — through mechanical shock, extreme temperature, high vibration and contested electromagnetic environments. A single-frequency or single-constellation receiver simply isn't built to survive that.
Jamming, multipath and constellation dropout degrade single-band receivers exactly when accuracy matters most.
Field and tactical deployments demand survival across shock, vibration, temperature and ingress conditions.
A hand-held survey rover and an armoured ground vehicle need fundamentally different receiver footprints.
Rather than a single receiver, Aeron's GNSS Systems solution is built as a family — sharing one multi-frequency, multi-constellation GNSS core across three purpose-built form factors. Whichever profile a program needs, the underlying positioning engine, protocol stack and qualification standard stay consistent.
That means a survey team, a robotics integrator and a defence platform can all standardise on the same GNSS approach — from the man-portable, RF-modem integrated GBM200, to the rugged RS232/Ethernet GN402, to the 500 g shock-rated, tactical-grade GN404 — all tracking GPS, GLONASS, Galileo, BeiDou, QZSS and NavIC (IRNSS).
Across every receiver in the family, signals from up to six GNSS constellations are tracked simultaneously and fused with RTK correction data to resolve position down to 1 cm CEP.
In
Out
The Deneb receivers are designed and manufactured in-house by Aeron, not re-badged third-party modules.
Every model in the family is qualified to MIL-STD-461E/F and MIL-STD-810G for EMI/EMC and environmental survivability.
From man-portable to tactical-grade, a single GNSS partner covers hand-held, rugged and mission-critical needs.
Consistent architecture across models simplifies long-term sustainment and spares planning for multi-year programs.
RS232, RS422, USB, 1PPS and Ethernet interfaces are supported across the Deneb series.
Select models include an integrated RF modem for RTK corrections, with full NavIC compatibility across the range.
One GNSS solution, deployed across defence, autonomy and precision field operations.
Shock-rated, MIL-STD qualified positioning for platforms operating in contested and high-vibration environments.
Centimetre-level RTK feedback for closed-loop navigation and control on unmanned platforms.
Hand-held to vehicle-mounted receivers for precision mapping, marine navigation and field operations.
The solution is delivered through the Deneb receiver series — three form factors on one common GNSS core.

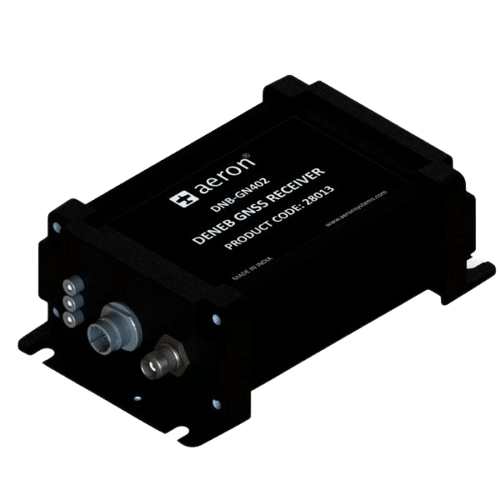

RS232 + Ethernet · DNB-GN402 · Code 28013
UTC-synchronized 1PPS CMOS output with RS232 & Ethernet interfaces
| Horizontal Position | 1 cm CEP with RTK · 1.5 m CEP Standalone |
|---|---|
| Vertical Position | 1 cm CEP with RTK · 2 m CEP Standalone |
| Dynamic Heading Accuracy | 0.3° (50% at 30 m/s) |
| Velocity Accuracy | 0.1 m/s |

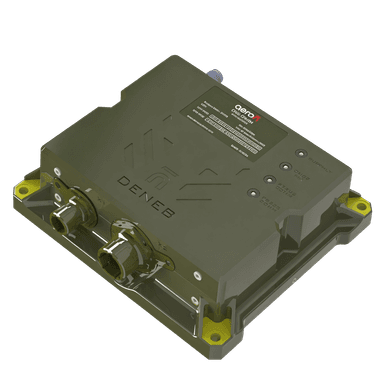

500 g Shock Rated · DNB-GN404 · Code 28019
Tactical, mission-critical receiver rated to survive 500 g shock
| Horizontal Position | 1 cm CEP with RTK · 1.5 m CEP Standalone |
|---|---|
| Vertical Position | 1 cm CEP with RTK · 2 m CEP Standalone |
| Dynamic Heading Accuracy | 0.3° (50% at 30 m/s) |
| Velocity Accuracy | 0.1 m/s |

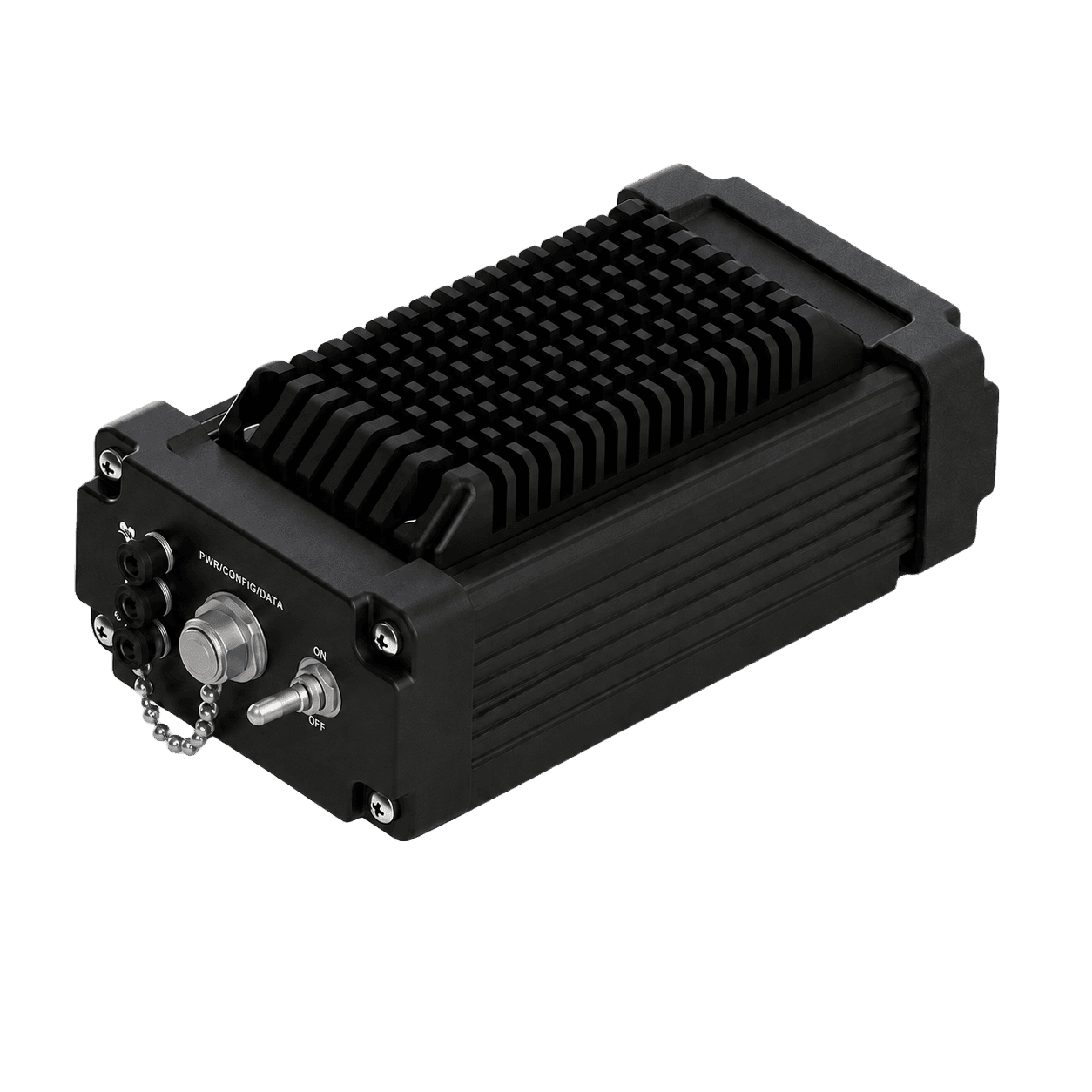

RF-Modem Integrated · DNB-GBM200 · Code 28015
Man-portable RTK receiver with an integrated 865–867 MHz RF modem
| Horizontal Position | 1 cm CEP with RTK · 1.5 m CEP Standalone |
|---|---|
| Vertical Position | 1 cm CEP with RTK · 2 m CEP Standalone |
| Dynamic Heading Accuracy | 0.03° (50% at 30 m/s) |
| Velocity Accuracy | 0.1 m/s |
Use this side-by-side view to match a receiver's form factor and interfaces to your program's requirements.
DNB-GN402 · DNB-GN404 · DNB-GBM200
| Deneb GN402 | Deneb GN404 | Deneb GBM200 | |
|---|---|---|---|
| Accuracy | |||
| Horizontal Position | 1 cm CEP with RTK · 1.5 m CEP Standalone | 1 cm CEP with RTK · 1.5 m CEP Standalone | 1 cm CEP with RTK · 1.5 m CEP Standalone |
| Vertical Position | 1 cm CEP with RTK · 2 m CEP Standalone | 1 cm CEP with RTK · 2 m CEP Standalone | 1 cm CEP with RTK · 2 m CEP Standalone |
| Dynamic Heading Accuracy | 0.3° (50% at 30 m/s) | 0.3° (50% at 30 m/s) | 0.03° (50% at 30 m/s) |
| Velocity Accuracy | 0.1 m/s | 0.1 m/s | 0.1 m/s |
| Deneb GN402 | Deneb GN404 | Deneb GBM200 | |
|---|---|---|---|
| GPS / GNSS | |||
| Type | L1/L2/L5* · GPS, GLONASS, Galileo, BeiDou, IRNSS/NavIC*, SBAS (*Factory upgradable) | Multi-Frequency · GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC (IRNSS) | Multi-Frequency GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC (IRNSS) |
| Update Rate | 10 Hz | – | 10 Hz |
| TTFF Cold Start | 45 sec | 60 sec | 60 sec |
| Reacquisition Time | 2 sec | 15 sec | 2 sec |
| Protocols | NMEA 0183, RTCM v3 | – | NMEA 0183, RTCM v3.3 |
| Signals Received | – | GPS L1CA/L1P/L1C/L2P/L2C/L5 · GLONASS G1/G2/G3, P1/P2 · BeiDou B1i/B2i/B3i/B1C/B2a/B2b · Galileo E1BC/E5a/E5b/E6BC · QZSS L1CA/L2C/L5/L1C/L6 · NavIC (IRNSS) L5 | – |
| Channels | – | 1100+ | – |
| Connector | – | – | D38999 Series III |
| Deneb GN402 | Deneb GN404 | Deneb GBM200 | |
|---|---|---|---|
| Antenna | |||
| Type | Multi-Constellation GNSS Antenna | Multi-Constellation GNSS Antenna | Multi-Constellation GNSS Antenna |
| Connector | TNC Socket | TNC Female (Amphenol 122210) | Power/Config, SMA (GNSS ×1, RF ×1) |
| Deneb GN402 | Deneb GN404 | Deneb GBM200 | |
|---|---|---|---|
| Communication & Electrical | |||
| Input Voltage | 12 to 32 V DC | 12 to 32 V DC | 11.1 to 12.6 V DC |
| Power Consumption | < 3 W | 2.9 W (± 0.5 W) | – |
| Interface Options | RS232 ×2 (COM1 config/data, COM2 RTK), Ethernet ×1, PPS ×1 | – | RS232 ×1 |
| LED Indicators | Power, Communication and Health | Power, Health, GNSS Fix and Communication | Power, Health, RF and GNSS/RTK |
| RS-232 (isolated) | – | 9600–921600 baud | – |
| RS-422 (isolated) | – | 4800–921600 baud | – |
| Ethernet (isolated) | – | 100 Mbps | – |
| Update Rate | – | 10 Hz | – |
| Output Data Protocols | – | NMEA 0183 (v2.3–v4.1), RTCM v3 | – |
| Input Data Protocols | – | RTK Correction: RTCM v3 | – |
| Built-In Tests | – | PBIT, CBIT | – |
| PPS Accuracy | – | 20 ns | – |
| Integrated Radio | – | – | 1 W · 865–867 MHz Transceiver |
| Deneb GN402 | Deneb GN404 | Deneb GBM200 | |
|---|---|---|---|
| Physical | |||
| Size | 179 × 106.23 × 61.96 mm | – | 156 × 80 × 56 mm |
| Weight | < 1.5 kg | 1.1 kg (± 50 g) | < 1 kg |
| Dimensions | – | 171.5 × 151.8 × 48.6 mm (± 0.5 mm) | – |
| Connector | – | 3-Pin and 22-Pin | – |
| Deneb GN402 | Deneb GN404 | Deneb GBM200 | |
|---|---|---|---|
| Environmental | |||
| Operating Temperature | −40 to +71 °C | −40 to +71 °C | −40 to +71 °C |
| Storage Temperature | −55 to +85 °C | −55 to +85 °C | −55 to +85 °C |
| Ingress Protection | IP65 | IP65 | IP67 |
| EMI/EMC | MIL-STD-461E/F | MIL-STD-461F, JSS55555 | MIL-STD-461E/F |
| Vibration | MIL-STD-810G | – | MIL-STD-810G |
| Survival Shock | – | Up to 500 g (MIL-STD-810G) | – |
| Humidity | – | 10–90% | 10 to 90% (non-condensing) |
| Power Supply Protection | – | As per MIL-STD-1275F | – |
| Environmental Tests | – | As per MIL-STD-810G and MIL-STD-704D | – |
DNB-GBM200, DNB-GN402, and DNB-GN404 — every spec, side by side.
| DNB-GBM200Man-Portable RTK Receiver | DNB-GN402RS232 + Ethernet Receiver | DNB-GN404Tactical Shock-Rated Receiver | |
|---|---|---|---|
| Accuracy | |||
| Horizontal Position | 1 cm CEP with RTK 1.5 m CEP Standalone | 1 cm CEP with RTK 1.5 m CEP Standalone | 1 cm CEP with RTK 1.5 m CEP Standalone |
| Vertical Position | 1 cm CEP with RTK 2 m CEP Standalone | 1 cm CEP with RTK 2 m CEP Standalone | 1 cm CEP with RTK 2 m CEP Standalone |
| Dynamic Heading Accuracy50% at 30 m/s dynamic operation | 0.03° (stronger) | 0.3° | 0.3° |
| Velocity Accuracy | 0.1 m/s | 0.1 m/s | 0.1 m/s |
| GPS / GNSS | |||
| Constellations*GN402 constellation support is factory upgradable | GPS, GLONASS, BeiDou, GALILEO, QZSS, NavIC | GPS, GLONASS, Galileo, BeiDou, IRNSS/NavIC, SBAS* | GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC (IRNSS) |
| Channels | — | — | 1100+ (stronger) |
| Update Rate | 10 Hz | 10 Hz | 10 Hz |
| TTFF Cold Start | 60 sec | 45 sec (stronger) | 60 sec |
| Reacquisition Time | 2 sec | 2 sec | 15 sec |
| Protocols | NMEA 0183 RTCM v3.3 | NMEA 0183 RTCM v3 | NMEA 0183 (v2.3–v4.1) RTCM v3 |
| Antenna | |||
| Type | Multi-Constellation GNSS Antenna | Multi-Constellation GNSS Antenna | Multi-Constellation GNSS Antenna |
| Connector | SMA (GNSS ×1, RF ×1) | TNC Socket | TNC Female (Amphenol 122210) |
| Communication & Electrical | |||
| Input Voltage | 11.1 to 12.6 V DC | 12 to 32 V DC | 12 to 32 V DC |
| Power Consumption | — | < 3 W | 2.9 W (± 0.5 W) |
| Interfaces | RS232 ×1 | RS232 ×2, Ethernet ×1 PPS ×1 | RS232, RS422, Ethernet (all isolated) |
| Integrated Radio | 1 W · 865–867 MHz Transceiver (stronger) | — | — |
| LED Indicators | Power, Health, RF, GNSS/RTK | Power, Communication, Health | Power, Health, GNSS Fix, Communication |
| Physical | |||
| SizeGBM200 has the smallest footprint of the family | 156 × 80 × 56 mm (stronger) | 179 × 106.23 × 61.96 mm | 171.5 × 151.8 × 48.6 mm |
| Weight | < 1 kg (stronger) | < 1.5 kg | 1.1 kg (± 50 g) |
| Environmental | |||
| Operating Temperature | −40 to +71 °C | −40 to +71 °C | −40 to +71 °C |
| Storage Temperature | −55 to +85 °C | −55 to +85 °C | −55 to +85 °C |
| Ingress Protection | IP67 (stronger) | IP65 | IP65 |
| Survival Shock | — | — | Up to 500 g (MIL-STD-810G) (stronger) |
| EMI/EMC | MIL-STD-461E/F | MIL-STD-461E/F | MIL-STD-461F, JSS55555 |
| Environmental Tests | MIL-STD-810G | MIL-STD-810G | MIL-STD-810G, MIL-STD-704D |
| Explore & enquire | View Product | View Product | View Product |
