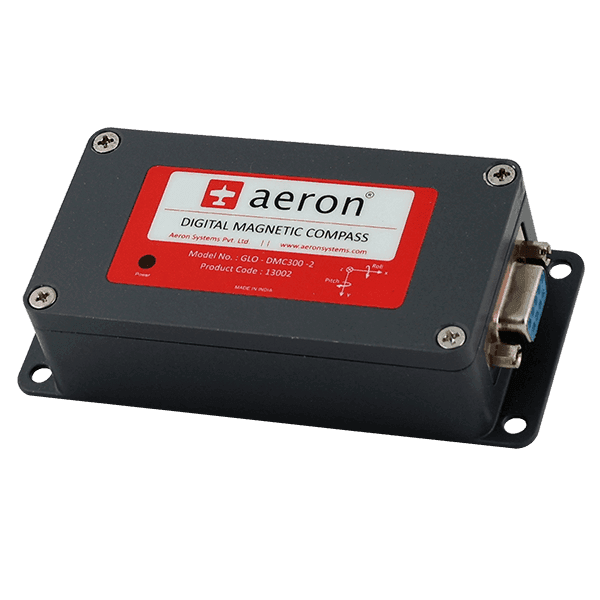

Galileo Digital Magnetic Compass


Perfect solution for compassing and navigation applications.

Galileo (DMC300) is a MEMS accelerometer and magnetometer based digital magnetic compass for attitude and heading reference. Use of solid-state components ensures robust performance in diverse environmental conditions. DMC300 is a highly suitable solution for compassing and navigation applications in naval vessels, boats, robots, UAVs and UGVs.

Product Details


refresh-icon

High output rates

compact_icon1

Compact

accurate

High heading, roll and pitch accuracy

tilt-compensated

Tilt compensated


PARAMETER NAMEPARAMETER VALUE
GALILEO
DMC 300
HEADING
Accuracy1,2,3±1˚ (1σ)
Resolution0.01°
Range±180°
Magnetometer Range±2 gauss
ROLL & PITCH
Range±180˚ (Roll)
±90˚ (Pitch)
Accuracy±0.5 (1σ)
Resolution0.01°
OUTPUT RATE41 Hz / 10 Hz / 20 Hz
INTERFACES
FormatRS232 ASCII or RS485 ASCII or RS485 MODBUS
Baud Rate9600 (default), 19200, 57600, 115200
ELECTRICAL
Power Supply+9V to +28V DC
Current Consumption< 150mA @ 12VDC
MECHANICAL
Size106.7 (L) x 47.6 (W) x 27.5 (H) mm
Weight180 gms
ENVIRONMENTAL
Operating Temperature-10˚C to +70˚C
Humidity0 - 95%
SealingIP60
1: In static and semi-static conditions
2: Accuracy valid within latitudes of ±60°
3 : Roll/Pitch < 45°
4: Configurable

TYPE OF DOCUMENTMODEL NO.

DATASHEET

DMC 300

USER MANUAL

GALILEO_DMC_UM_v2.0.2

Applications

Application

Directional guidance to Yacht and small ships


Application

Directional assistance to ground vehicles and robots


Application

Navigation of drones and other UAVs
